Semi Automatic Radiator Core Builder Machine Pneumatic Tube Distribution Function

PNEUMATIC RADIATOR CORE BUILDER MACHINE WITH TUBE DISTRIBUTION DEVICE

Introduction

The radiator core builder machine is used to assemble cores based on a combined control of a mechanical

and pneumatic mechanism and the electrical control system of PLC, and touch screen. The flat tubes, fins,

side plates and header plates are manually placed on the work table.

Features

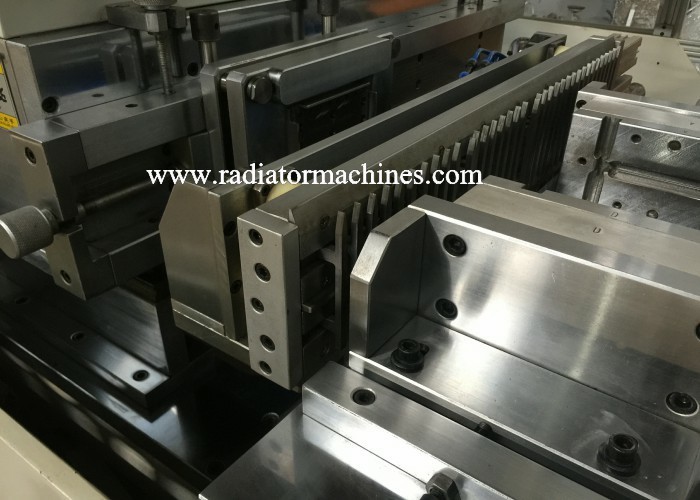

The flat tubes are distributed through a servo tube distribution device. And the overall comb teeth structure could ensure

the flat tube positioning accuracy.

The radiator core builder machine is designed with 2-hand push buttons for safety operation.

The equipment is easy for operation, adjustment, and tooling replacement.

Parameters of Radiator Core Builder Machine

Company Introduction

Our company mainly supplies the radiator making machines for brazing radiators. The machines for making

brazing radiators include the following: aluminum radiator fin machine, radiator core builder machine, radiator

plastic tank crimping machine, air leak tester, header mold, plastic tank mold, etc. The machines for making

mechanical radiators include the following: high seed fin press, progressive fin die, aluminum radiator tube fin

expansion machine, aluminum radiator tube-header expansion machine, radiator plastic tank clinching machine,

hydraulic press, etc.

core builder machine

core assembly machine

Semi Automatic Radiator Core Builder Machine Pneumatic Tube Distribution Function Images
